Specifications
We have all the dimensions, weights, and specifications on our dollies available so you can review and compare.

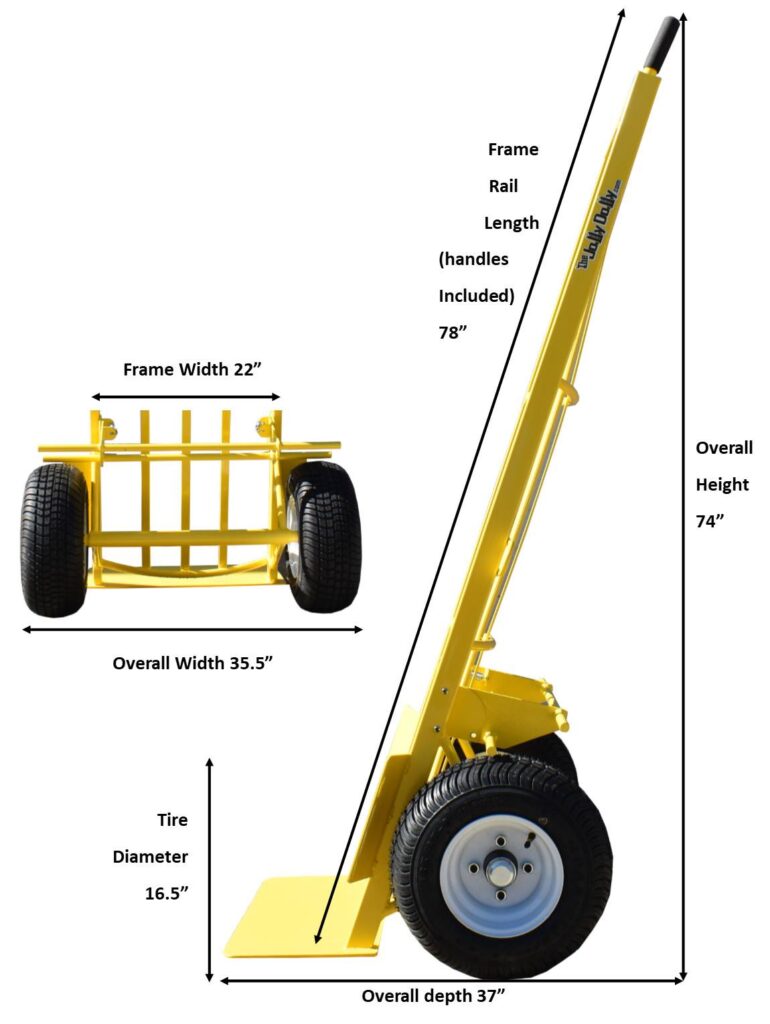

The Jolly Dolly Hand Truck weighs 125 pounds with the foot brake, wheels, and tires all included (110 pounds without the foot brake).Tires: 6-ply Kenda 165/65-8 bias-ply trailer tires

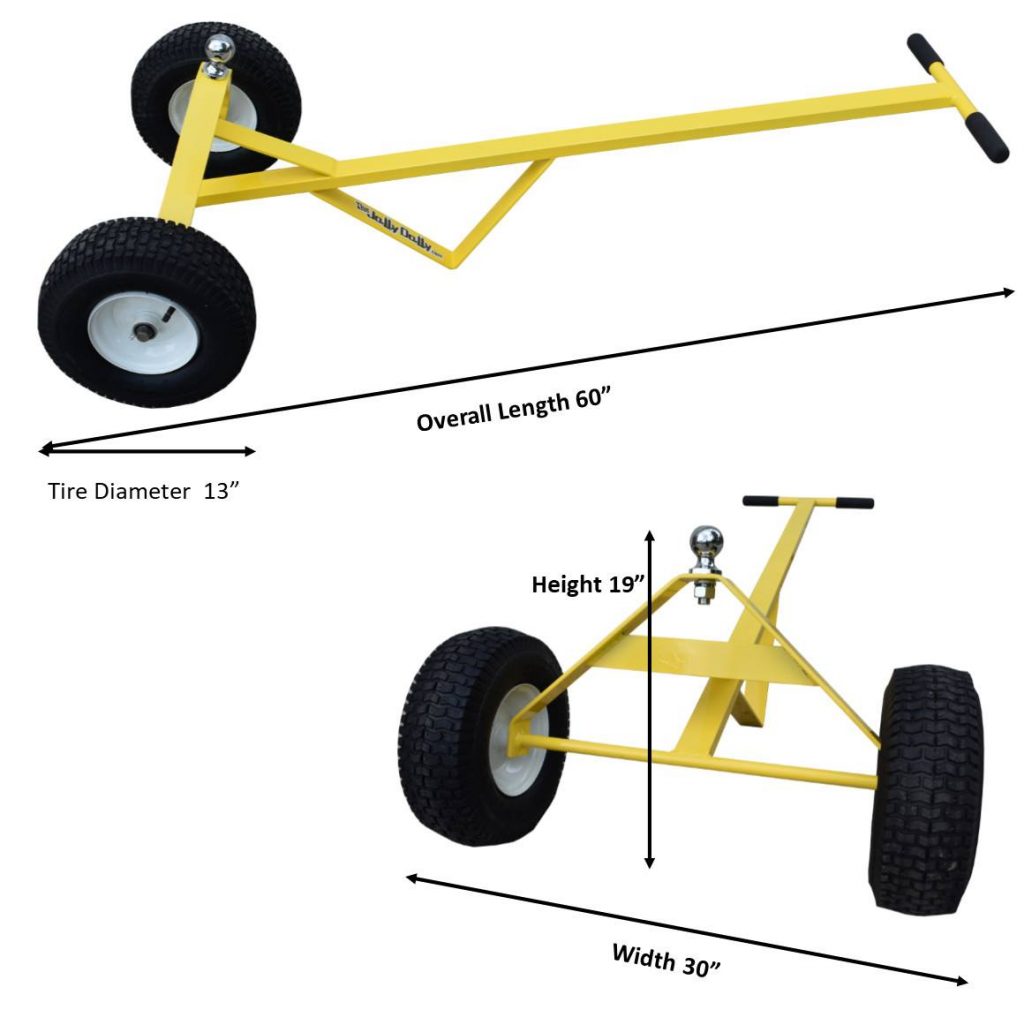

The wagon piece weighs 35 pounds, including the wheels and tires. It comes equipped with durable Marathon 13×5-6 pneumatic turf tires, ideal for smooth, stable movement across various terrains.
Motor
Axle / Direct Drive
Battery
40V 25AH LifePo4
Capacity
1000 lbs
Tires
6-ply 16
Specifications
- Weight 290 LBS

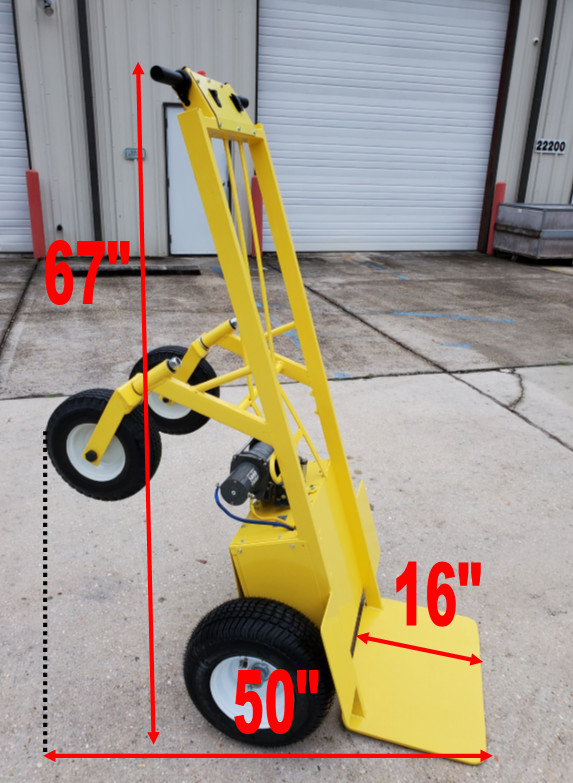

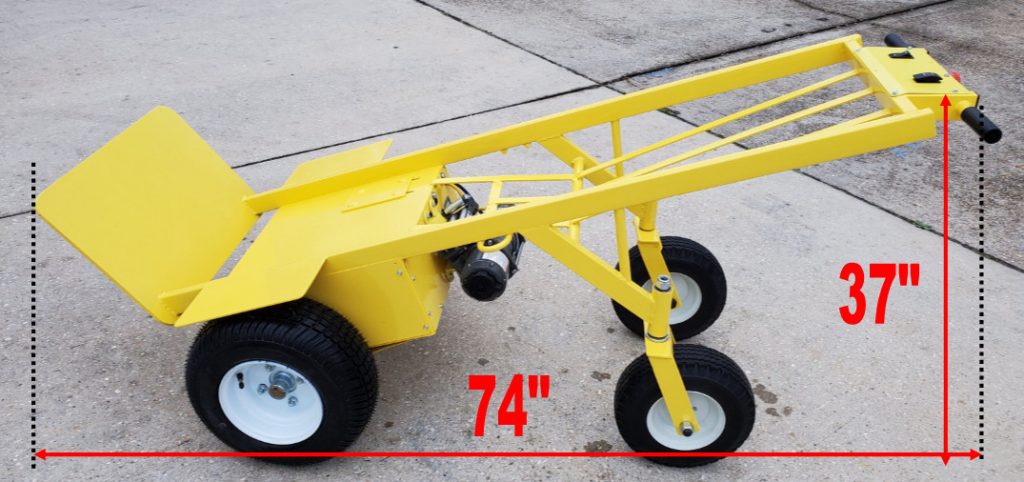

- Dimensions (Upright): 67” tall x 32” wide x 47” deep
- Axle: Direct Drive
- Motor: 40 volt permanent magnet motor
- Batteries: 40 volt, 25 amp-hour lithium iron phosphate with integrated battery management system
- Brake: automatic, electromagnetic
- Throttle: dual thumb throttles; control with either hand
- Controller: Curtis Instruments 90AMP
- Front Tires: 16” diameter x 6.6” wide 6-ply pneumatic turf tires
- Rear Tires: 12” diameter x 4” wide flat-free tires on zero-turn mower swivel yokes
- Charging: onboard charging with LED status lights (charges with standard extension cord)
- Battery Indicators: Digital LCD display(s)
- Frame: recessed frame with side rails to cradle inflatables
- Construction: laser cut and CNC machines parts mig-welded in a jig
- Powder Coat: sand blast prep followed by several thick coats of PPG industrial powder coating cured in a 400 degree oven for a durable finish
- Ratchet Straps: Dual retractable
- Warranty: 1-year limited, lifetime tech support
Winch System:
- 2500# winch with 40’ synthetic rope cable
- Dual wireless remotes
- Wired remote on dolly
- Pulley at top of dolly for lifting inflatables
- Dedicated on-board 12 volt, 22AH battery
- Built-in battery charger and battery indicator
- On/Off Switch
